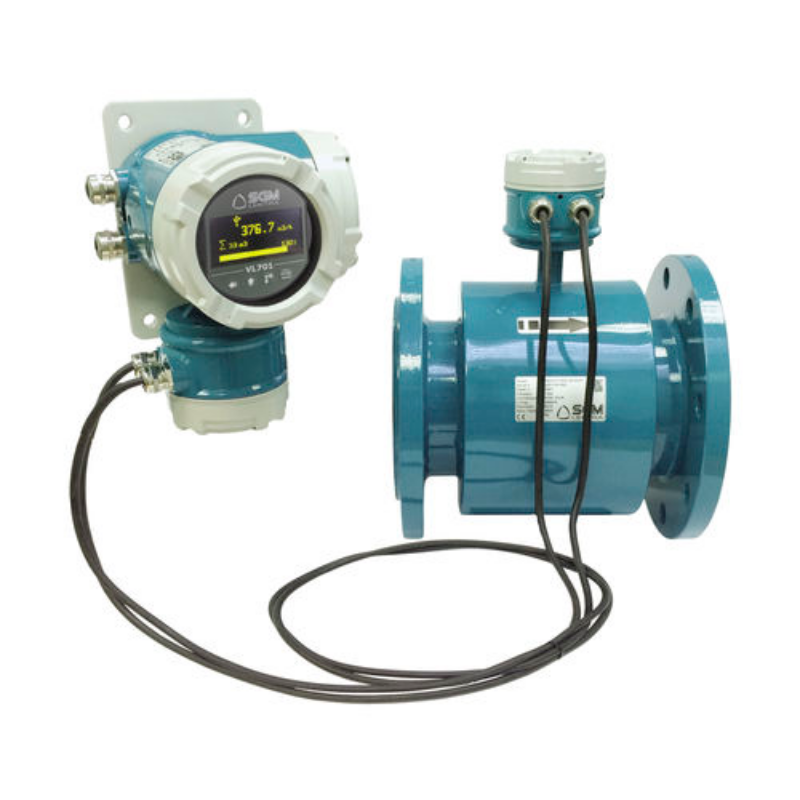

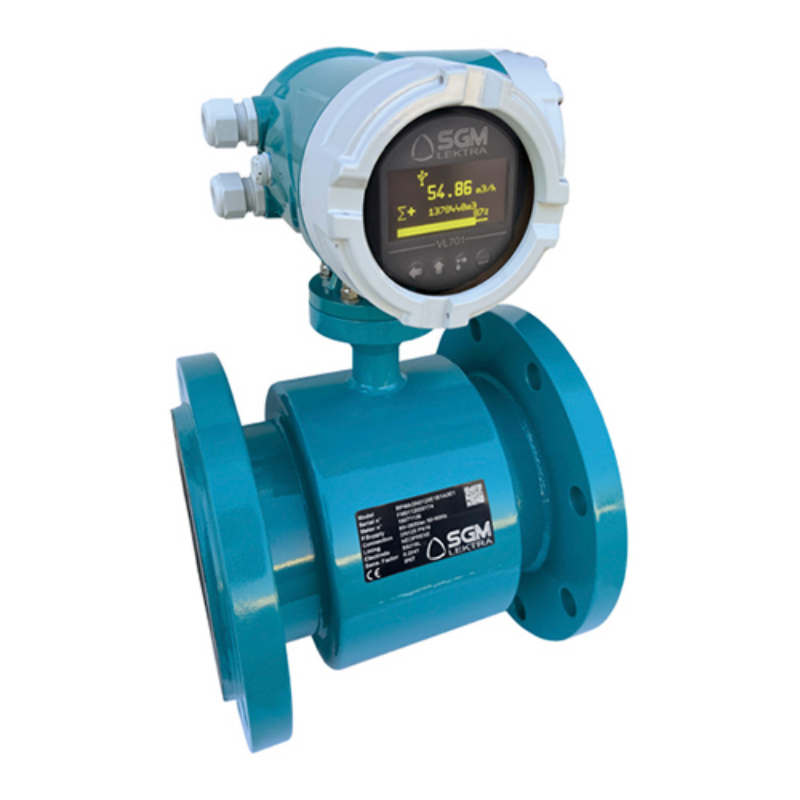

SGM Electromagnetic Flowmeter

SGM Electromagnetic Flowmeter Malaysia : Lightweight, Easily Installation, Heat Resistant



We manufacture and supply SGM Electromagnetic Flowmeter that gives highly accurate results, and is designed for flow and usage monitoring in various commercial applications. It is extremely light in weight, easy to install, resistant to heat, and compatible with varying water-based liquid solutions.

This SGM Electromagnetic Flowmeter monitors flow rate and total flow in a vast array of applications including but not limited to HVAC, Turf/Irrigation, and other water reclamation applications alike.



Benefits of Using Our SGM Electromagnetic Flowmeter :

• Non-invasive

• Having no moving parts

• Reducing risks of breakdowns and the need for repairs

• Low power usage

• Capable of dealing with most kinds of acids and bases, along with water and water based solutions.

• Able to measure flow rates that are both very low and high



Product Specifications :

Brand : SGM LEKTRA (Italy)

Model : RPMAG

Certificate : SPAN approval

Measurement Accuracy : ±0.2% ; ±0.5%

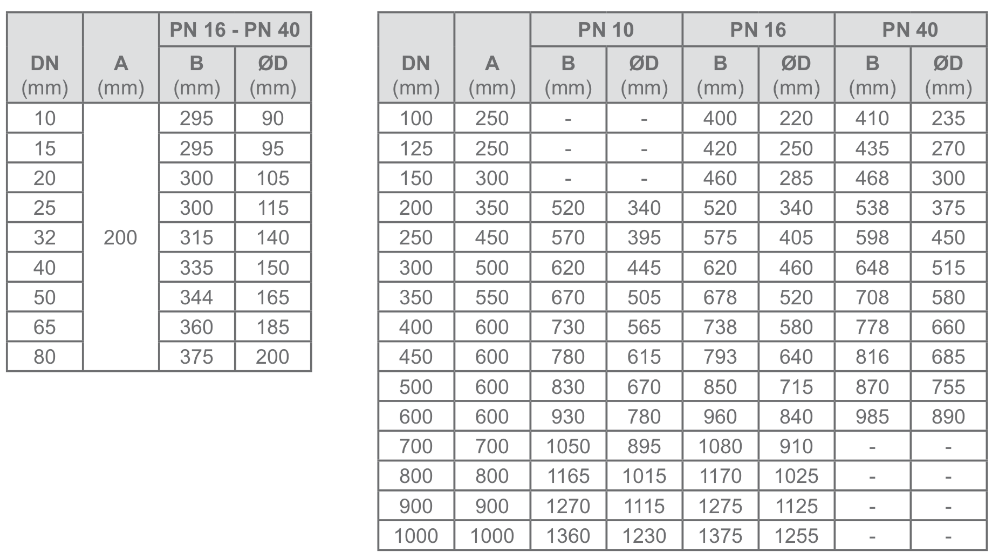

Size Range : DN10~DN2000

Lining Material : PTFE - DN10~DN500 , Rubber - DN65~DN2000

Housing Material : Flange DIN ; Flange ANSI

Process Temperature : Rubber -40c~80c ; PTFE -40c~150c

Communication : HART / MODBUS / Bluetooth

Output : 4~20mA

Power Supply : 85~265VAC , 12VDC , 24VDC





Overview :

RPmag flowmeter is suitable for all of applications into “industrial process”. Various materials for lining are available as well as electrodes made of tantalum, hastelloy c, titanium. Most common communication systems such as Modbus, Hart and by means of an app for Android smartphone via Bluetooth. RPMAG has an integrated data logger for the recording of the measurements over time. It consist in an USB pen drive which is inserted behind the removable O-LED display VL701. The recorded data are stored into a TXT file which is compatible with Excel or other equivalent analisys software packages
